Procedural Obstacle Placement

Procedural Obstacle Placement Using Rewriting Systems. The awesome 3d models that appear on the following videos were made by @KayLousberg ,and are taken from their mini game variety pack Avilable Here .

Tech Used

Unity

HLSL

Showcase

How it works

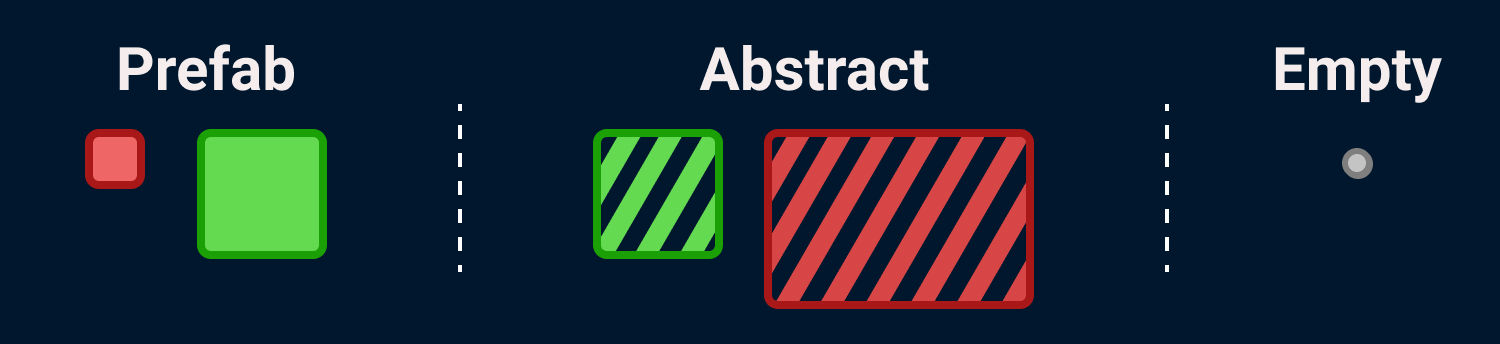

Element Types

Prefab
Prefab elements represent objects that are going to be placed in the level. The size of these elements should be the same as the size of the object it represents, the size should be scale according to the cell size of any given system (e.g. Object size is 2x2 and cell size is 2 then the prefab element size should be 1x1).

Abstract
Abstract elements describe some concept, for example a “hard section”, “easy section”, “rocky section”, etc.Because of how the transformation rules work technically a collection of prefab nodes could also be used to reference a section and transform it accordingly, but we could run into a problem by doing this because multiple sections could have the same prefab configuration by chance and the rule be applied somewhere it was not supposed to. Information on how they are represented in a level is given in a later section.

Empty
Empty elements exist in the absence of any element, if present in the level graph they are represented as empty space.

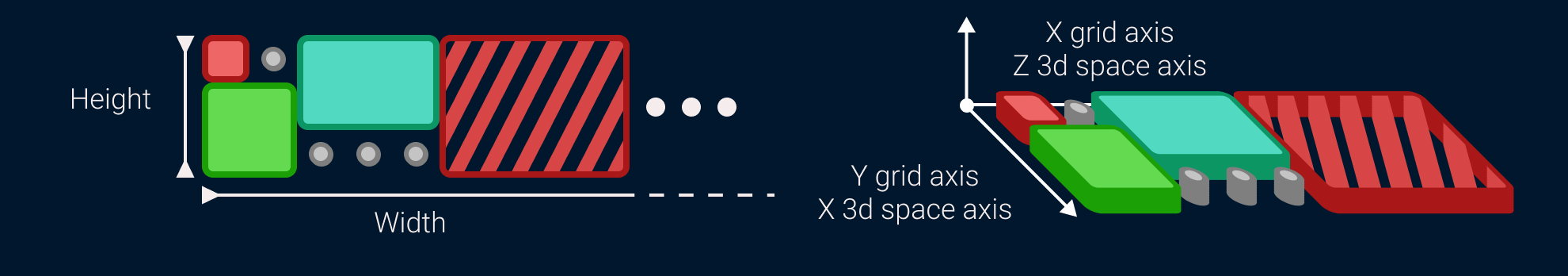

Grid
A grid is a collection of elements that come from a specific element collection. The height of the grid can go from 1 to the max height (that max height comes from EC) and the width is unconstrained. The position of the elements in the grid is defined as the top left grid cell the element occupies.

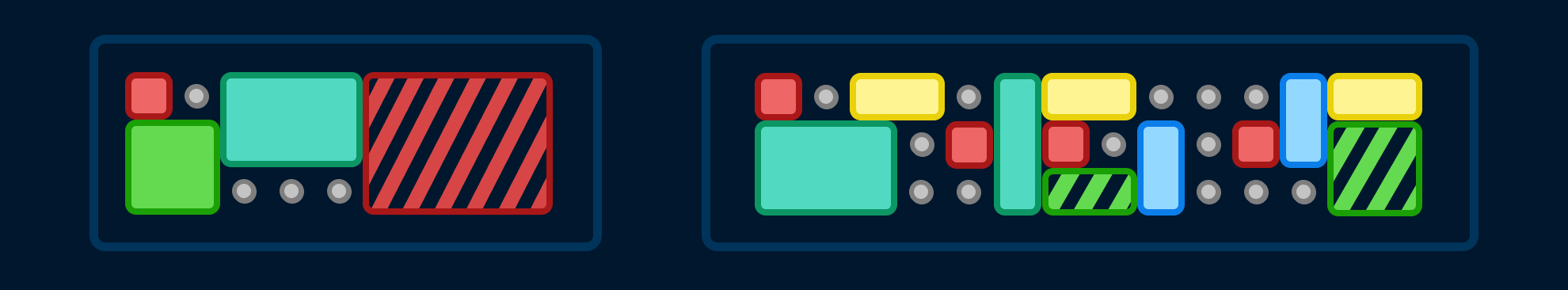

Level Template
A level template is a grid that is meant to be used as the initial value for the level generation. All of the elements can be placed (prefab, abstract, empty) and the height has a constant value of the maximum height set in the element collection. As the initial value, it should be created considering the rules that are going to be set on the level generator, because if the template does not contain any sub grid contained in the rules, then no rule is going to be applied.

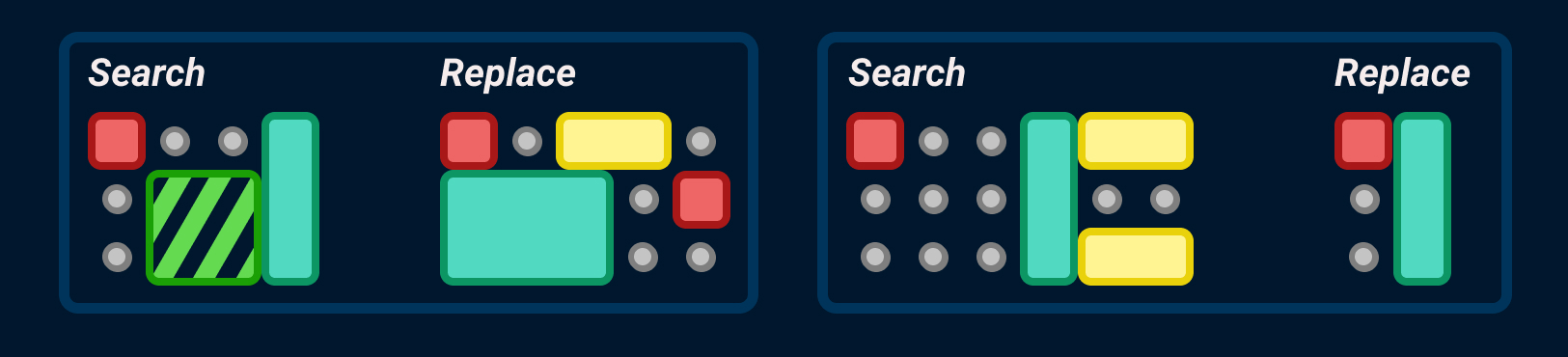

Transformation Rule
A transformation rule has a “search” grid and a “replace” grid, the height of the search and replace grid have to be the same and the width can be different. The grids can contain any element type.

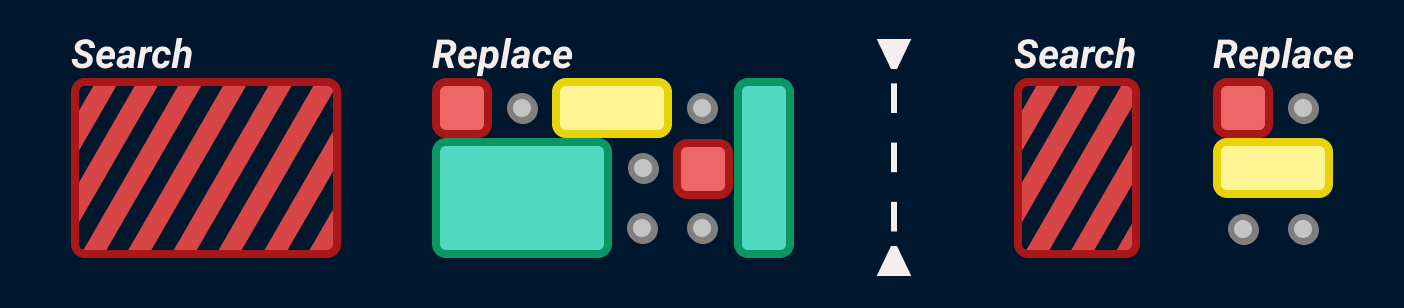

Definition Rule
Subtype of transformation rules. These rules are used to define abstract elements. The “search” grid of a definition rule only contains a single element (the abstract element this rule is defining) and the “replace” part can only contain empty or prefab elements. The height of the rule is defined by the abstract element and the width is unconstrained. There can be an indefinite amount of definition rules but it would be advisable if all of them share the same “theme”, for example in the abstract element is named “bomb section” then a bomb should always be the most important element in the “replace” grid, if it is called “easy section” then easily clearable obstacles and abundant empty space should always appear in the “replace” grid.

Rule Application Steps

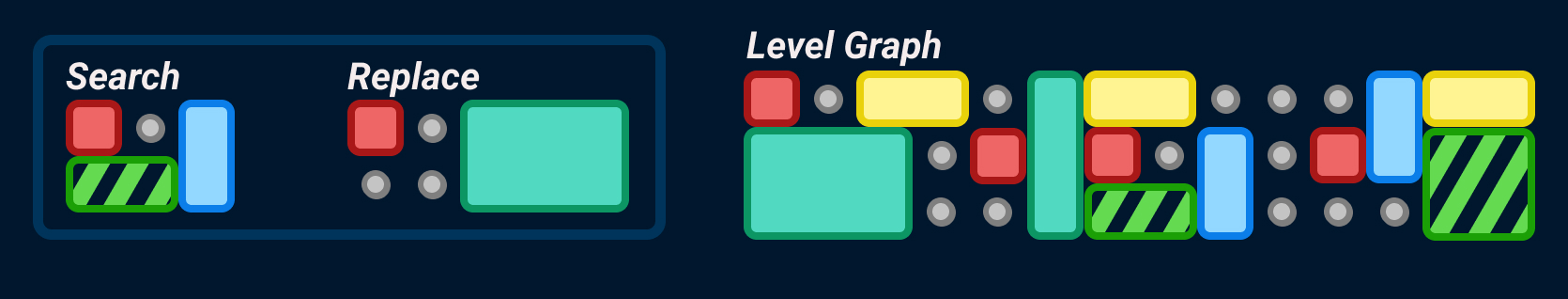

Step 1

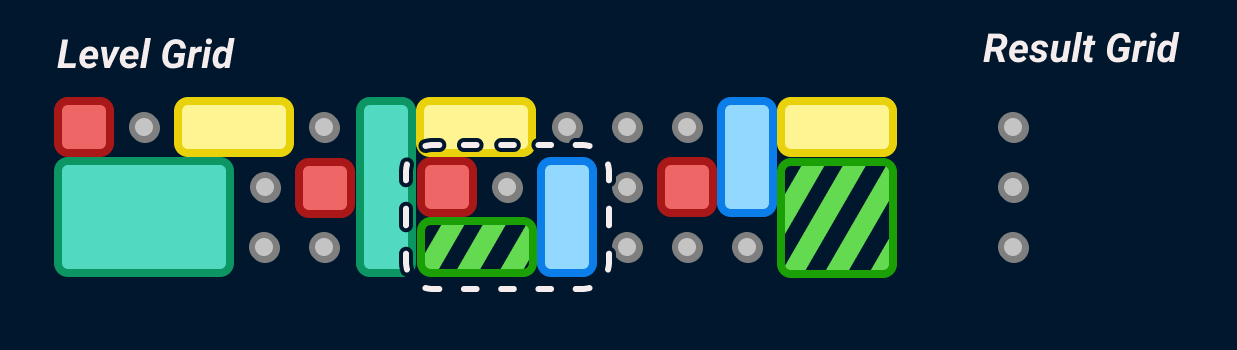

Search for a sub grid that has the same configuration as the search part of the rule. If one is found, generate another grid to hold the results. It should have the same height and 1 as width.

Step 2

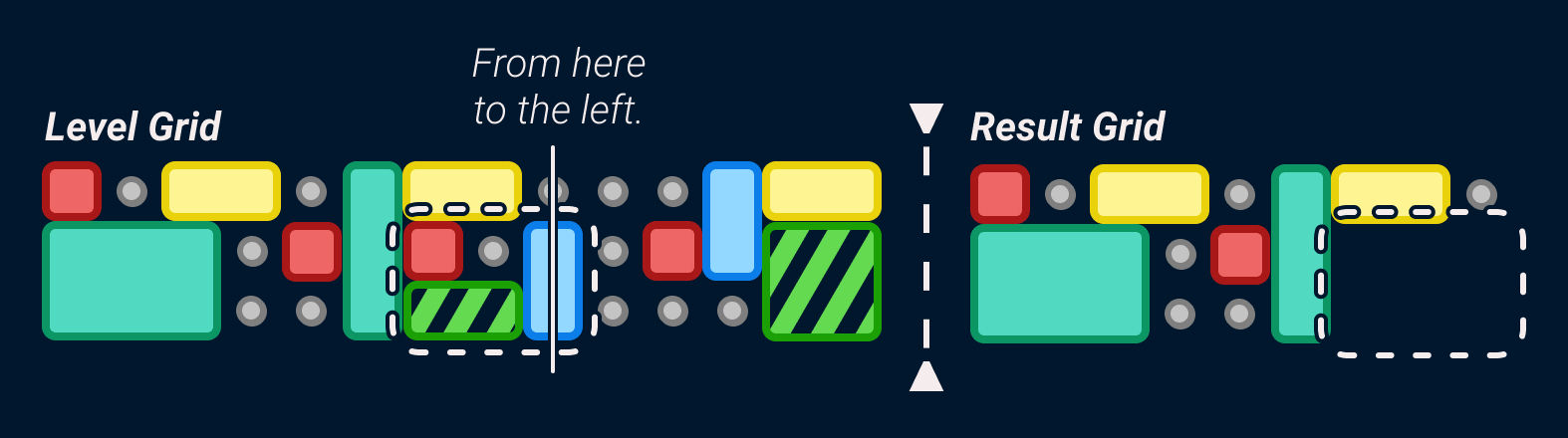

Add all the elements that are positioned to the left of the last column the rule occupies, excluding the element in the sub grid.

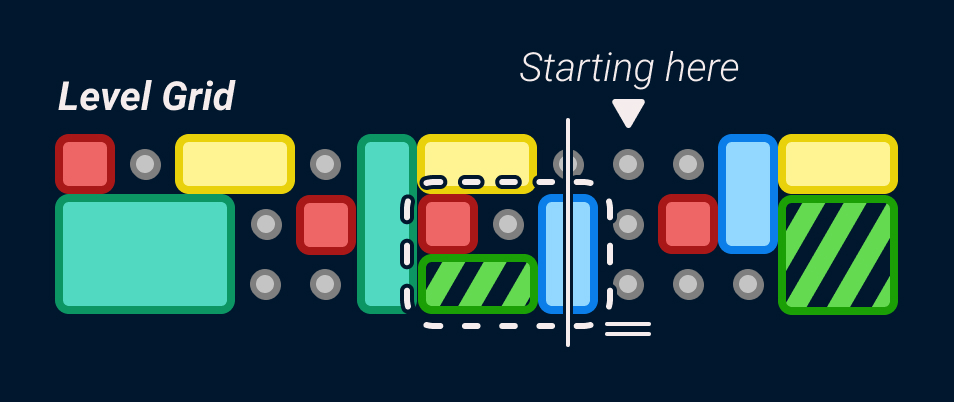

If the width of the “replace” grid is greater or equal to the “search” grid. Starting in the column to the right of the found sub grid, check if the width the sub grid takes could be increased without destroying any prefab or abstract elements. Let’s call this "available width". In this case the width can be increased by one without destroying any prefab or abstract elements.

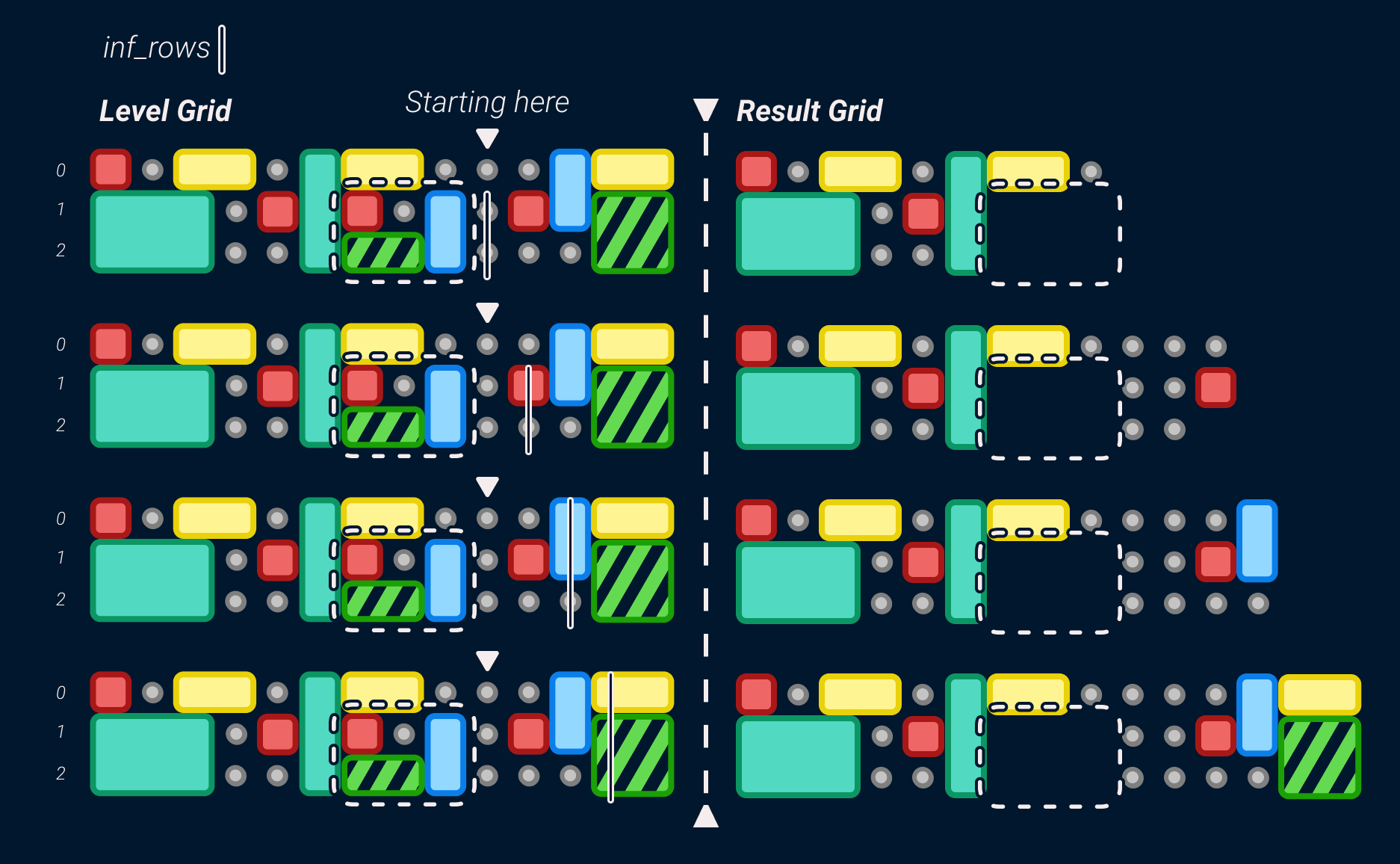

Step 3
Let's add all the other elements (excluding the ones from the “search” / “replace” grid) to the result grid.
There are 3 possible scenarios that the system could run into in this step:

sw = rw

The width of the 'search' and 'replace' sides of the rules are the same in which case just keep adding the rest of the elements as usual

sw < rw

In this case the system has to exapnd the space between the right most side of the search rule and the first left most element after the search column until the widths, match, by adding more columns in between

sw > rw

In this case the system has to contract the graph pulling the elements in the order they appear until pulling an element would make it overlap with an unaffected element. The elements above and below the search space are not affected by this. A visual presentation of this scenario is presented later

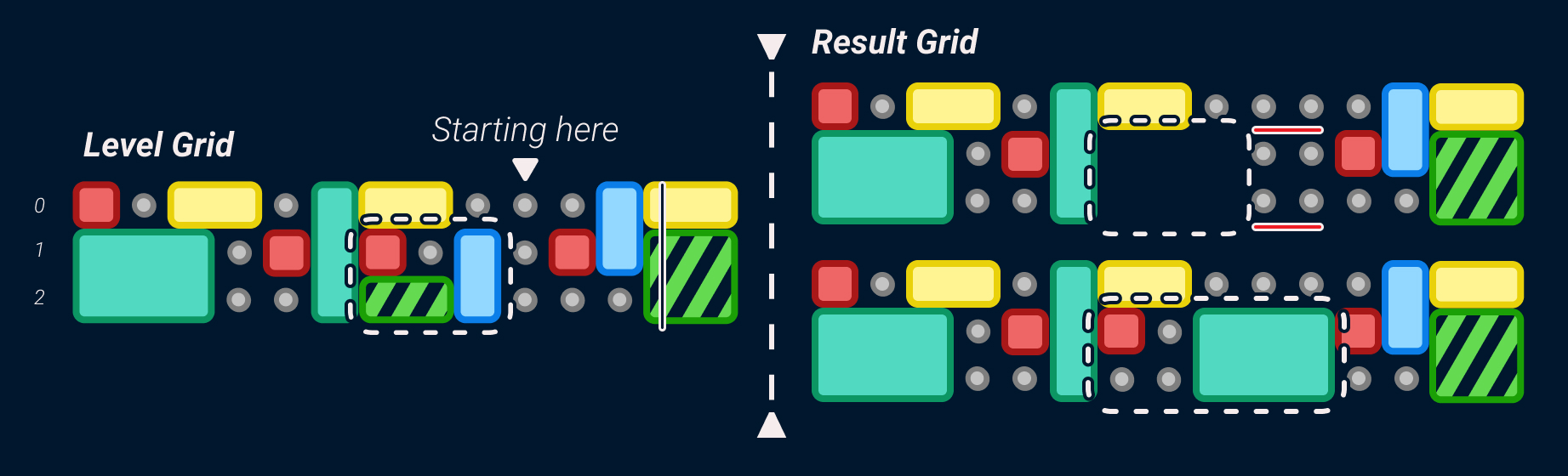

Step 4
The last step is to add the replace side of the rule in the available space. Because of how empty nodes are treated, you might find that gaps between 'sections' are removed. There is no sure way to "solve" this as this is one of the weaknesses of how the rules rewriting is only applied locally.

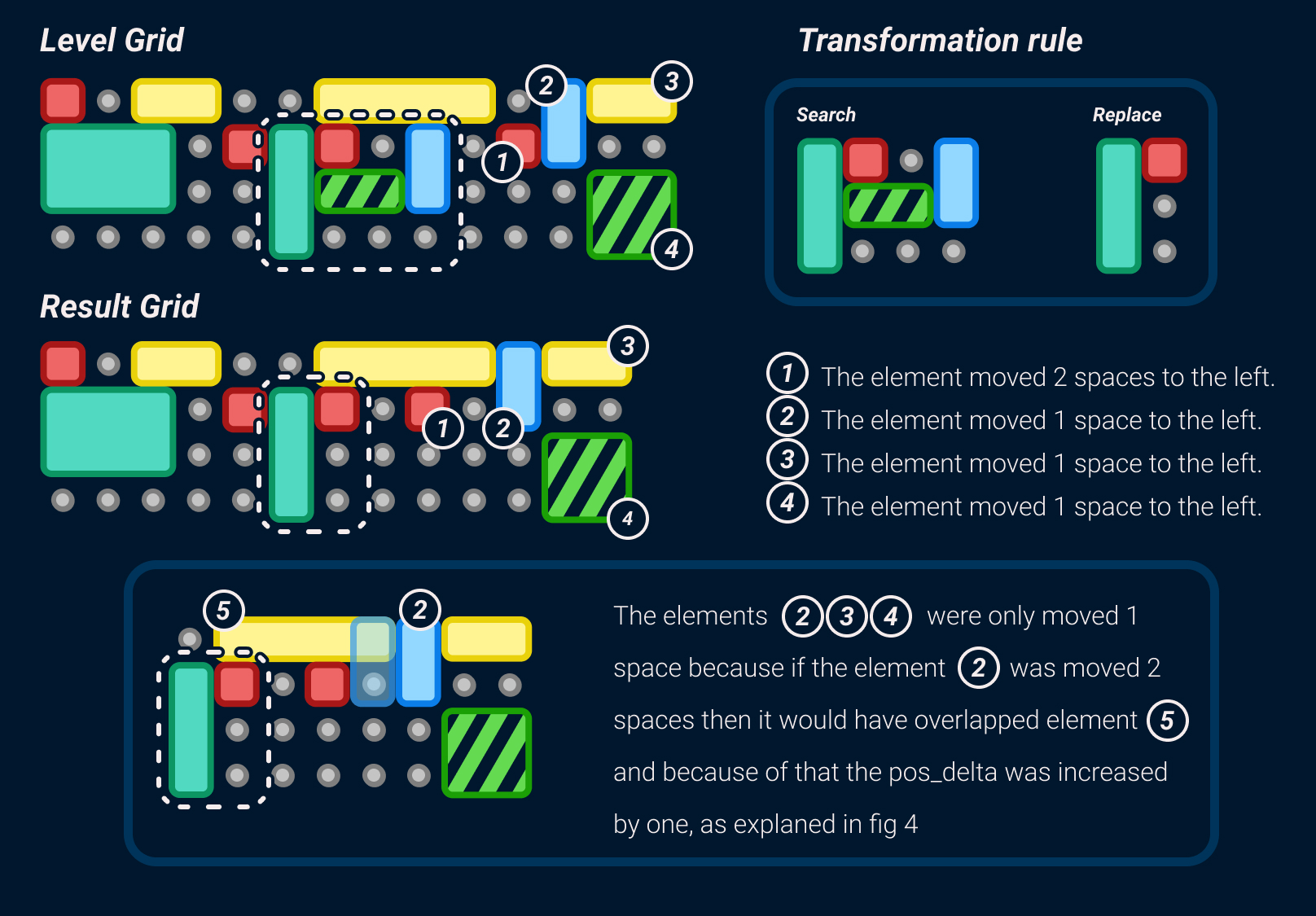

Example of sw > rw

3d Level Generation
The level grid generator is used to generate grids that are meant to represent levels. There are 3 steps to generate a level:

A random level template is selected from the template list and a grid is generated from it.

All the transformation steps are applied to the generated level.
A transformation step contains a list of rules, and an int2 that represents the minimum and maximum amount of times the rules can be applied. First an application count is randomly selected from the range, then a rule is randomly selected and applied that many times.

Transformation step
Rule List - { Rule1, Rule2, Rule3 }
Application Range - ( Min , Max )

If there are any abstract elements left, then randomly selected default transformation rules are selected from each one, this is done in the order shoun in the image. (remember that an element position is the top left corner).
